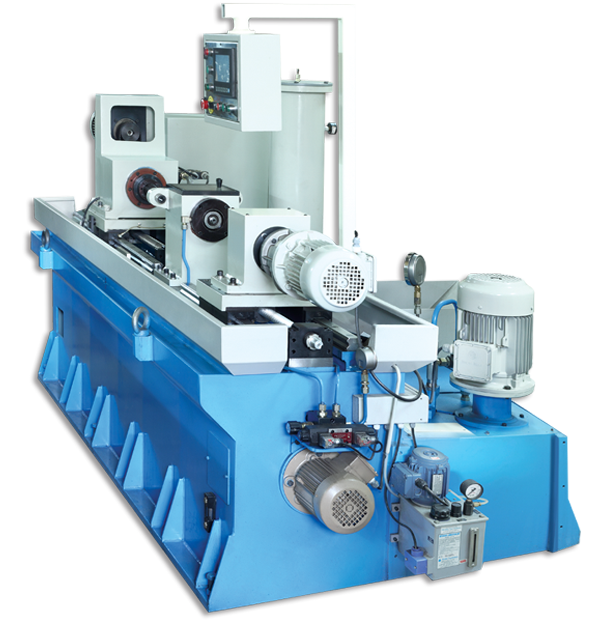

Single Spindle PLC base Gun Drilling Machine
- Drilling Range : DIA 4 mm – DIA 15 mm
- Drilling Depth : 600 mm
- Component Holding Length with Counter Rotation (Shaft) : 600 mm
- Max. Spindle Speed : 0 – 4000 rpm
- High Pressure Coolant System with filtration

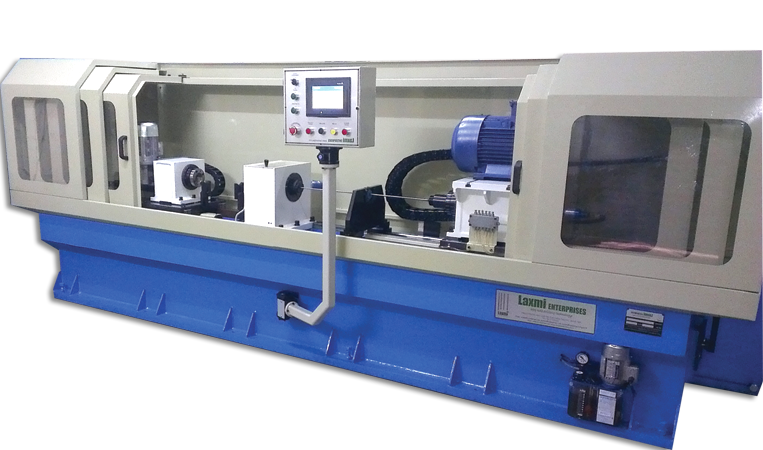

Single Spindle PLC base Gun Drilling Machine
- Drilling Range : DIA 8 mm – DIA 25 mm
- Drilling Depth : 1000 mm
- Component Holding Length with Counter Rotation (Shaft) : 1000 mm
- Spindle Speed : Variable
- High Pressure Coolant System with filtration

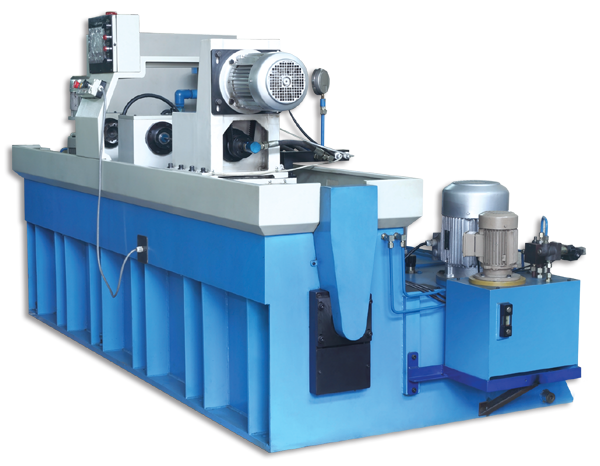

Single Spindle Gun Drilling Machine

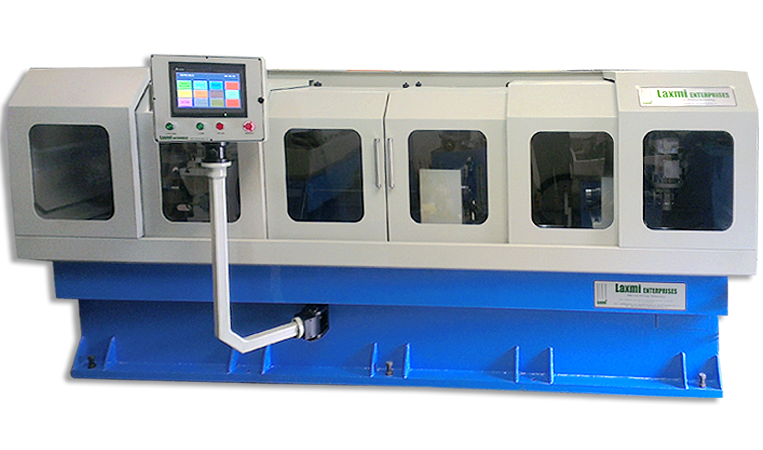

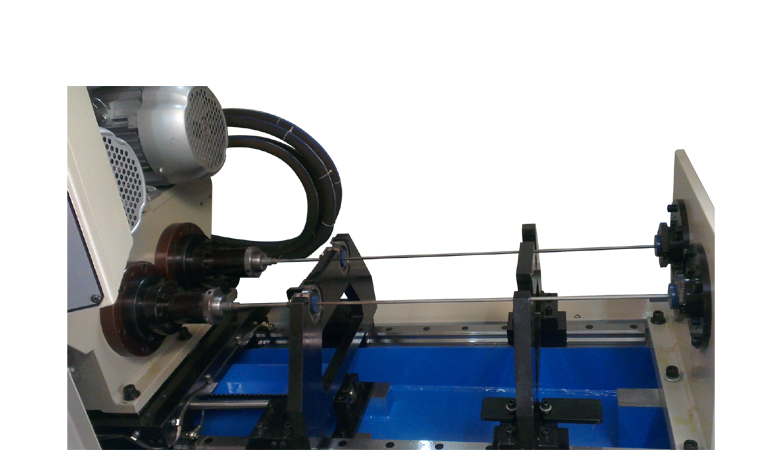

Two Spindle Gun Drilling Machine
Technical Specifications of (GEL Series) Machine
| Machine Type | GLE 600 | GLE 1000 | GLE 1500 |
|---|---|---|---|
| No. of Spindlese | 1 / 2 | 1/2/3 | 1/2/3 |
| Gun Drilling Diameter Range (mm) | Ø3 - Ø15 | Ø6 - Ø25 | Ø8 - Ø30 |
| Max. Drilling Depth (mm) | 150-600+ | 1000+ | 1500+ |
Technical Specifications of various Deep Hole Drilling Machine
| Machine Type | GD 40 | GD 50 | GD 60 | GD 80 | GD 100 |
|---|---|---|---|---|---|
| No. of Spindlese | 1 / 2 | 1/2/4 | 1/2/4 | 1/2/4 | 1 / 2 |
| Gun Drilling Diameter Range (mm) | Ø3 - Ø6 | Ø6 - Ø14 | Ø12 - Ø25 | Ø18 - Ø30 | Ø18 - Ø75 |
| Max. Drilling Depth (mm) | 150/1000 | 1000/1500 | 1500/2500 | 1500+ | 2500+ |
